Cuadro: Orbea Orca Aero Carbon OMX, construcción monocasco, dirección con soporte tapered HS 1,5", 12×142 mm
Horquilla: Orbea Orca Aero OMX ICR, carbono completo, dirección tapered 1 1/8″–1,5″, 12×100 mm
Transmisión completa SRAM Red AXS (12 velocidades)
Frenos: hidráulicos SRAM Red AXS, discos de 160 mm (delantero) y 140 mm (trasero)
Manillar y potencia integrados: OC SH‑RA10 Road Aero Carbon con reach de 80 mm y drop de 125 mm
Dirección: FSA 1‑1/2″
Ruedas: Oquo Road Aero RP57LTD
Cubiertas: Vittoria Corsa Pro
Ejes: delanteros 12×100 mm y traseros 12×142 mm
Tija de sillín: OC Road Aero RA10 Carbon Ultralight, ajuste micro tilt
Sillín: Fizik Vento Antares R1 Carbon Rail
Accesorios integrados: portabidón OC Aero Bottle RA10 (550 ml) con jaula de carbono

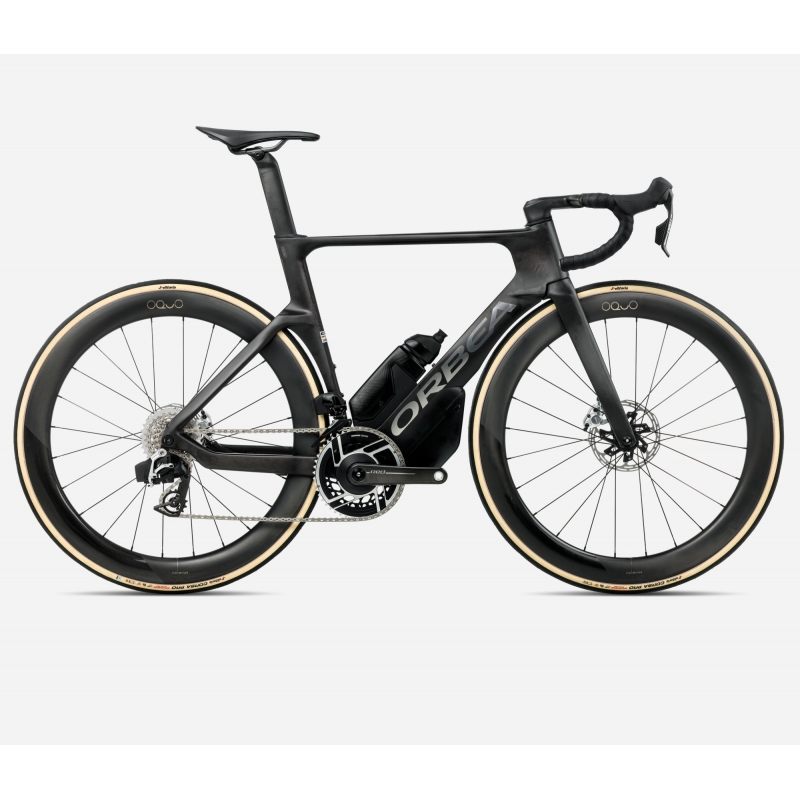

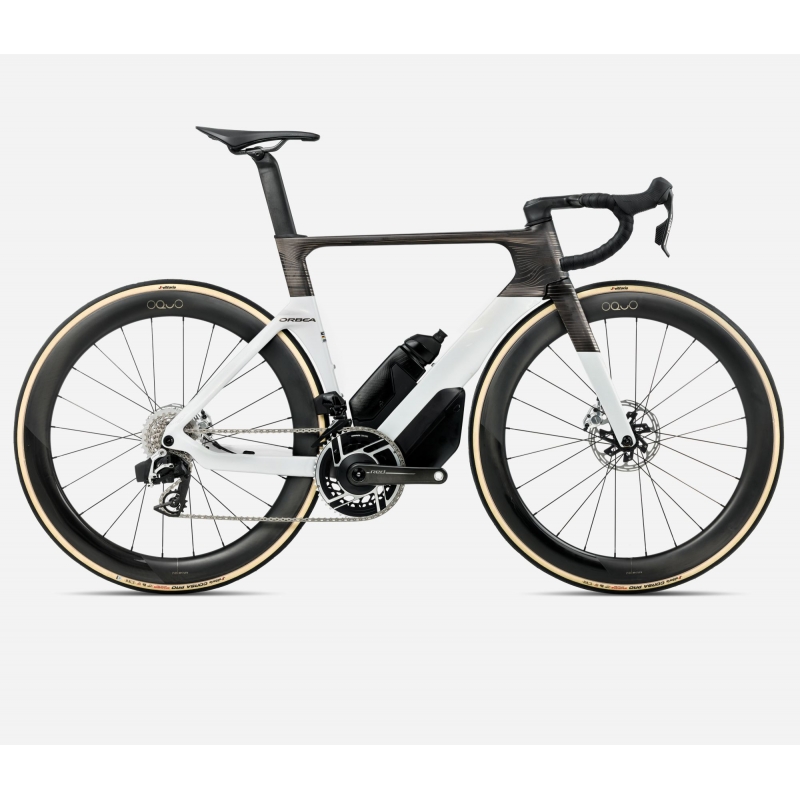

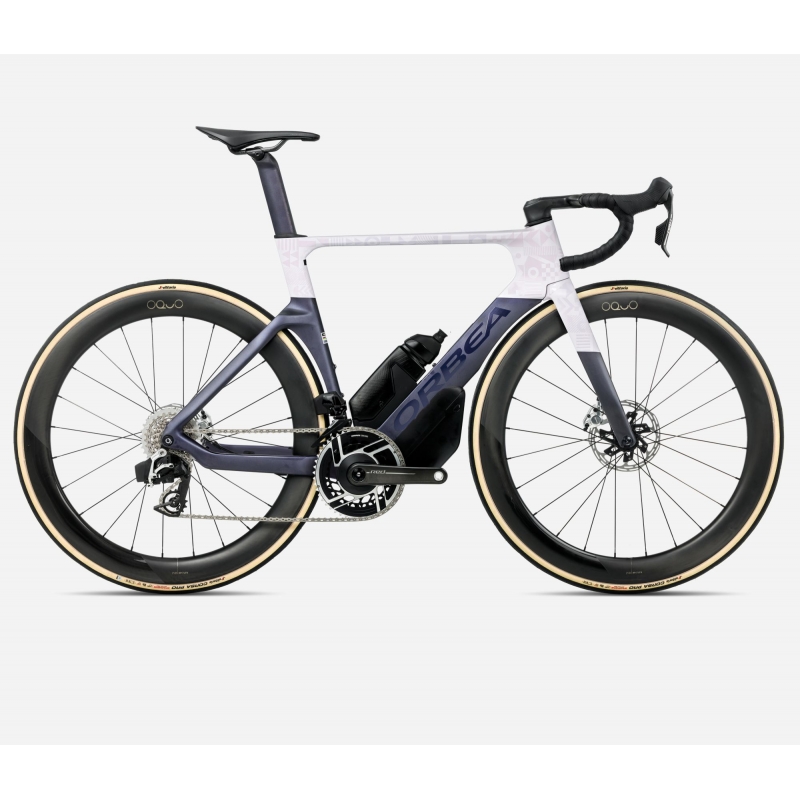

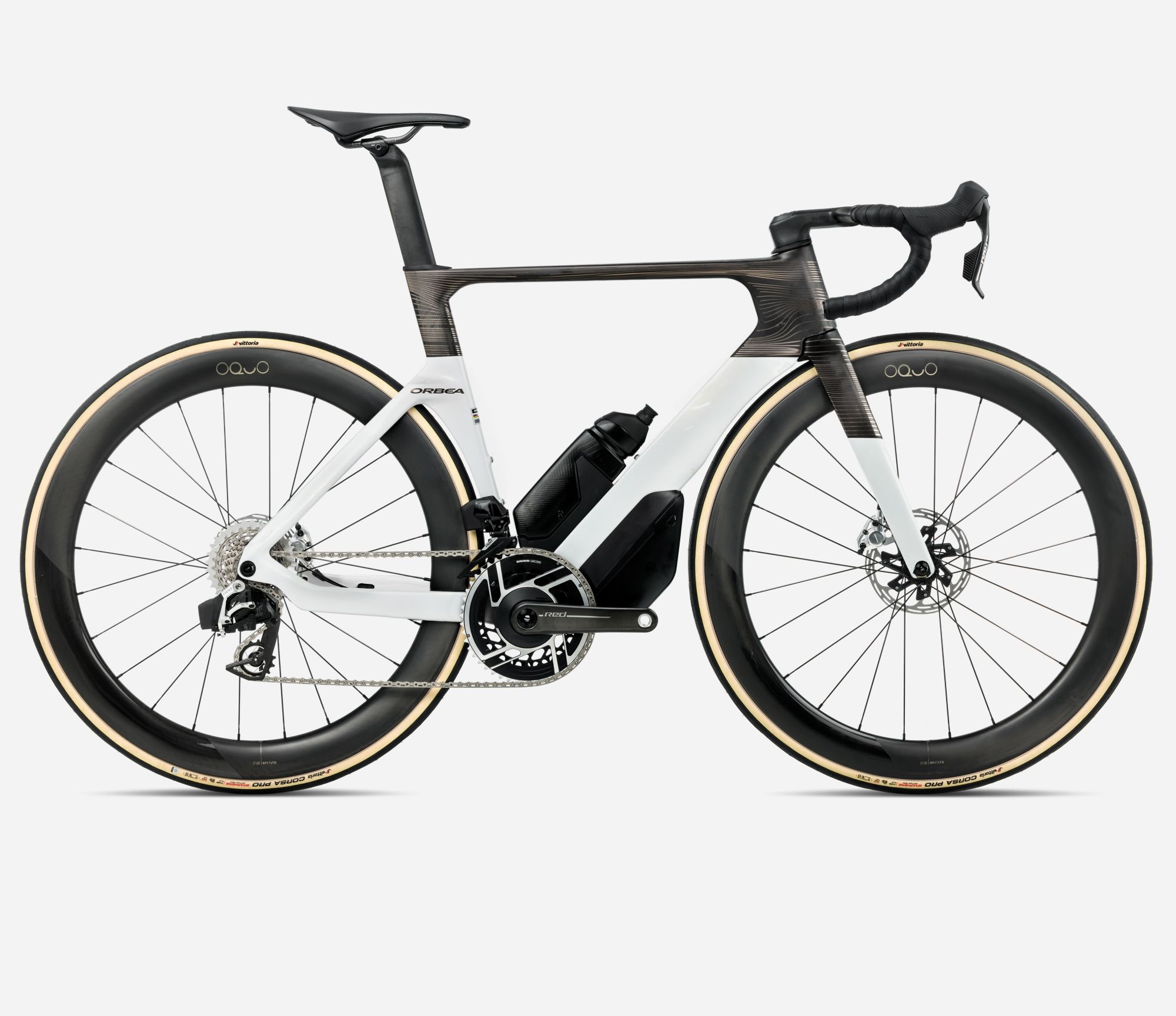

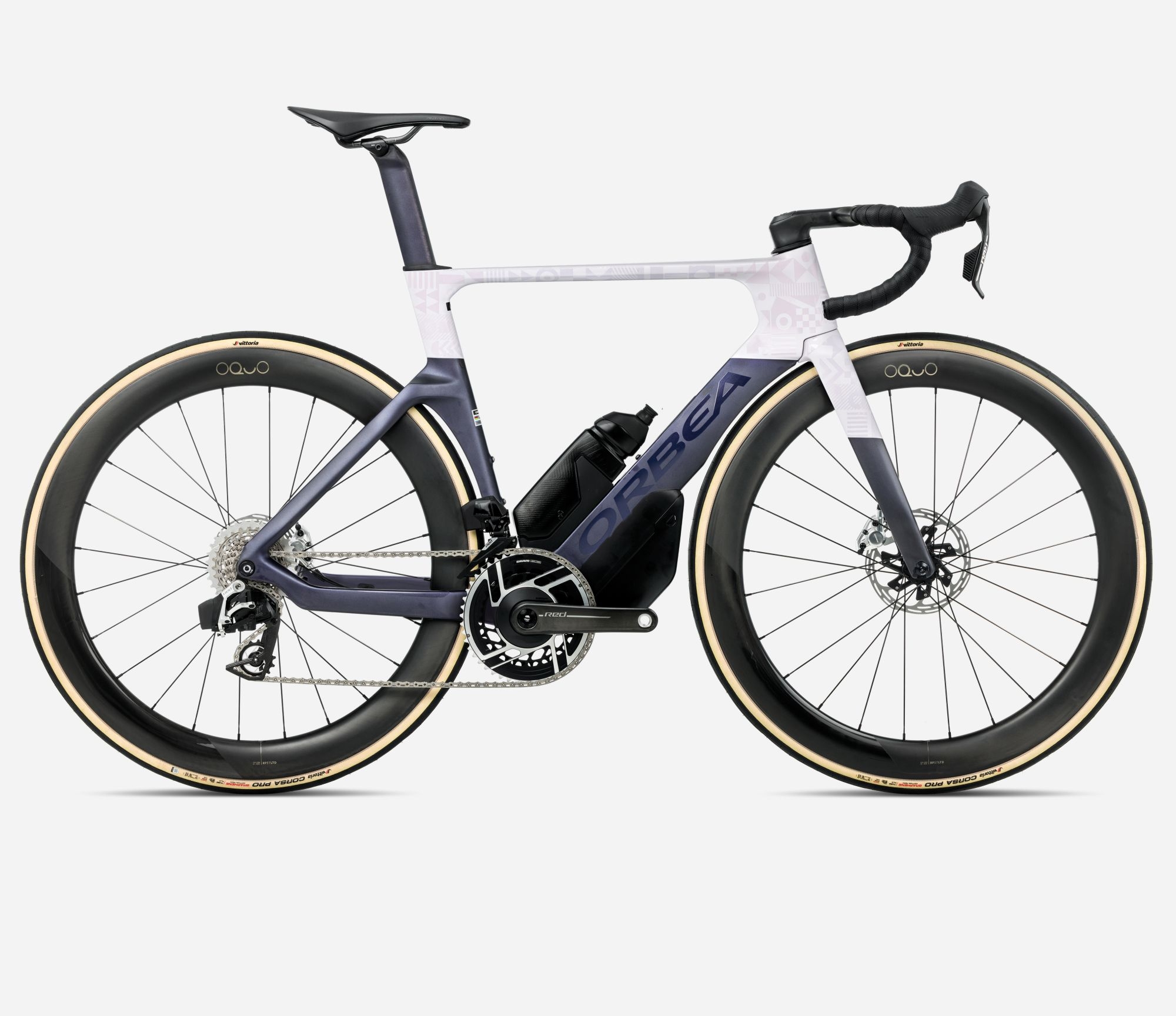

ORBEA ORCA AERO M11ELTD
Cuadro: Orbea Orca Aero Carbon OMX, construcción monocasco, dirección con soporte tapered HS 1,5", 12×142 mm
Horquilla: Orbea Orca Aero OMX ICR, carbono completo, dirección tapered 1 1/8″–1,5″, 12×100 mm
Transmisión completa SRAM Red AXS (12 velocidades)
Frenos: hidráulicos SRAM Red AXS, discos de 160 mm (delantero) y 140 mm (trasero)
Manillar y potencia integrados: OC SH‑RA10 Road Aero Carbon con reach de 80 mm y drop de 125 mm
Dirección: FSA 1‑1/2″
Ruedas: Oquo Road Aero RP57LTD
Cubiertas: Vittoria Corsa Pro
Ejes: delanteros 12×100 mm y traseros 12×142 mm
Tija de sillín: OC Road Aero RA10 Carbon Ultralight, ajuste micro tilt
Sillín: Fizik Vento Antares R1 Carbon Rail
Accesorios integrados: portabidón OC Aero Bottle RA10 (550 ml) con jaula de carbono
ORBEA AVANT H40
CUADRO ORBEA AVANT HYDRO 12X142MM DISC
HORQUILLA AVANT CARBON 12X100MM DISC
GRUPO SHIMANO TIAGRA 4700 10 SPEED
FRENOS JAWIERE MECANICOS DISC
RUEDAS ALLOY TUBELLES
SILLIN FIZIK
Cuadro: carbono OMX (tope de gama), monocoque, con la máxima ligereza (~730 g) y rigidez, compatible con potenciómetro, ejes thru‑axle (12×142 trasero / 12×100 delantero), guiado interno ICR Plus
Horquilla: también OMX, alrededor de 360 g
Geometría: racing pero escaladora, preparada para neumáticos de hasta 32 mm
CUADRO
Orbea Monocasco Race Carbono. Tecnología de suspensión Advanced Dynamics de 160 mm. Ruedas de 29". Eje trasero Concentric Boost 12x148. Geometría pura Enduro. Guiado de cables interno. ISCG05
PLATO
Era Race Face 32t
MANILLAR
OC Mountain Control MC10 Carbon, Rise 20, Ancho 800
FRENO
Disco hidráulico Shimano XTR M9120
RUEDA
OQUO Mountain Control MC32LTD Carbono
ARENQUE TIJA
Cuentagotas Fox Transfer Factory Kashima 31.6
HERRAMIENTAS
OC Palanca trasera (Hex 6 y extracción del núcleo de la válvula) + OC FLP Multiherramienta MT-20, Hex 2, 3, 4, 5
Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1.
Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm
Sram Force AXS Power Meter Dub 35x48t
Sram Force AXS
Sram XG-1270 10-33t 12-Speed
Sram Force AXS 12s
Sram Force eTAP AXS
Sram Force 12-Speed
OC Road Aero RA11 Carbon, Reach 80, Drop 125
OC Road Performance RP10, -8º
Sram Force AXS
160mm Front /140mmUEDA
Oquo Road Performance RP35TEAM
Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Orbea Thru Axle 12x100mm M12x2 P1 Lite
Orbea Thru Axle 12x142mm M12x2 P1 LiteOC Performance XP10-S Carbon, 27.2mm, Setback
Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
FSA 1-1/2" Integrated Aluminium Cup
Shimano GRX RX610 30x46t
Shimano GRX RX610
Shimano HG710 11-36t 12-Speed
Shimano GRX RX820
Shimano GRX RX820
Shimano RX410 Hydraulic disc
N/RUEDA
Alloy, Tubeless, 700c, 21c
Vittoria Terreno T30 fine loose Gravel 700x40c
Orbea Thru Axle 12x100mm M12x2 P1 Solid
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
SP 0.2 Carbon
Fizik Terra Argo X7
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout
Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.
FSA 1-1/2" Integrated Aluminium Cup
Shimano GRX RX610 40t
Shimano GRX RX610
Shimano CS-M7100 10-51t 12-Speed
Shimano GRX RX822 SGS
Shimano RX410 Hydraulic disc
Alloy, Tubeless, 700c, 21c
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Orbea Thru Axle 12x100mm M12xP1 Hollow
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
SP 0.2 Carbon
Fizik Terra Argo
/A
Orbea Rallon OMR. 442mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 225x75mm
Fox 40 Float Factory 203, Grip X2, 20x110, Kashima
Alloy 1-1/2", Black Oxidated Bearing
DH GravityLink
Race Face Turbine 34t
Shimano Saint M820
Shimano CS-M771 11-32t 10-Speed
Shimano SAINT M820 SS Shadow Plus
Shimano XTR Hydraulic Disc
Oquo Mountain Control MC32TEAM (29" Front / 27,5" Rear)
Maxxis Assegai 2.50" WT FB 60x2 TPI 3C MaxxGrip DH TR
Maxxis Minion DHR 2.40" WT FB 60x2 TPI 3C MaxxGrip DH TR
Race Face Turbine 31.6x400mm
Fizik Gravita Alpaca X5
ORBEA MX 24 TEAM DISC
CUADRO ALU 6061 CABLES INTERNOS
HORQUILLA ALU 6061 DISC
GRUPO SHIMANO ACERA M3020 8 SPEED
FRENOS SHIMANO HIDRAULICOS
RUEDAS DE 24"
CUBIERTAS KENDA
SILLIN DDK
ORBEA RALLON M11 AXS
CUADRO ORBEA RALLON CARBON RACE BOOST
AMORTIGUADOR FOX FLOAT X PERFORMANCE 2 POSITION 230X62MM
HORQUILLLA FOX 38 FLOAT PERFORMAMCE 170 3 POSITION QR15X110MM
GRUPO SRAM GX EAGLE AXS 12 SPEED
RUEDAS OQUO MC32TEAM
TIJA OCMC21 31,6MM
Cuadro de aluminio avanzado con guiado interno de cables
Shimano Cues 1x9v
Freno de disco hidráulico Shimano MT200
Neumáticos Kenda Booster
Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shock
Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm
RockShox Reba Motion Control 120 DebonAir+ RL 3-Position 15X110 Boost
Alloy 1-1/2", Black Oxidated Bearing
Forged alloy, 32t
Shimano Deore M6100
Sun Race 11-51t 12-Speed
Shimano Deore M6100 SGS Shadow Plus
KMC X12
Alloy, 35mm, Rise 12mm, 780mm
Alloy 3D forged, 35mm interface, -7º
Shimano MT201 Hydraulic Disc
N/RUEDA
Alloy, 26c, 28H, TLR
Maxxis Rekon 2.4" 60 TPI Rigid EXO/TR
OC Mountain Control MC22, 31.6mm, Dropper
OC Squidlock MP20-D Dropper Remote
Fortune QF-3091
Fox Lockout, 2 Position, Dual
Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
FSA 1-1/2" Integrated Aluminium Cup
OC Road Performance RP11, -8º
OC Performance XP10 Carbon, 27.2mm, Setback 0
Orbea Thru Axle 12x100mm M12xP1 Hollow
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
BMX KHOTA
CUADRO ALU 6061 CON DIRECCION INTEGRADA
HORQUILLA ACERO HI-TEN
POTENCIA KHOTA ORIGINAL INTEGRADA EN LA PIPA DEL CUADRO PARA SU PROTECCION UNICA
BIELAS MONOBLOC DE 170MM
PLATO 36T BMX
MANILLAR KHOTA EN M
RUEDAS DE 20"
ESTRIBOS EN LA RUEDA TRASERA
Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Speed 400mm Alloy Flat mount
VP-Z104PD 1-1/8" Semi-Cartridge
Orbea, Alloy, 42t
Shimano Claris SL-R2000
Shimano HG50 11-34t 8-Speed
Shimano Claris RD-R2000-GS
KMC X8
Alloy, 31.8mm, Riser, 640mm
Alloy, 7º
Orbea Trekking Alloy 4-finger
Shimano TX805 Mechanical Disc
N/RUEDA
Alloy, Tubeless, 700c, 21c, 32H
Kenda K1067 700x38C Reflective type+puncture protection
VP-229 Black with reflectors
N/A
SP 0.6, Alloy, 27.2mm, Setback 0
Fortune QF-3094
ORBEA TERRA M20ITEAM
CUADRO TERRA CARBON OMR 12X142MM
HORQUILLA TERRA CARBON DISC 12X100MM
GRUPO SHIMANO GRX DI2 12 SPEED
FRENOS SHIMANO GRX RX820
RUEDAS OQUO RC25TEAM
TIJA OC
SILLIN PROLOGO
Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
SR Suntour XCT 30 Coil 100mm QR
1"-1/2 Semi-Integrated
Forged alloy, 22x36t, 10S
Shimano Deore M4100
Shimano CS-M4100 11-42t 10-Speed
Shimano Deore M4120 SGS Shadow
Shimano Deore M6025 31.8mm
KMC X10
Alloy, 31.8mm, Flat, 740mm, Sweep 9
Alloy, 7º
Shimano MT200 HydraulicRUEDA
WH 2.1, Alloy, 29", 32H
Kenda Booster 2.40" 30TPI
VP-537 Black
SP 0.6, Alloy, 27.2mm, Setback 0
Fortune QF-3091
